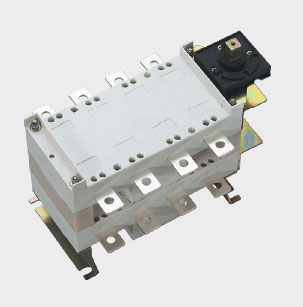

Change-over Load Isolation Switch

Product Show

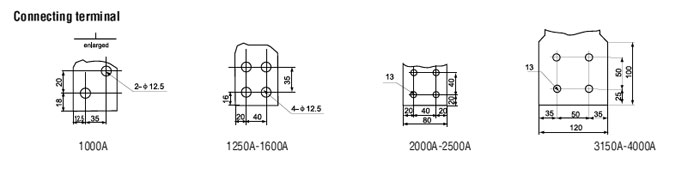

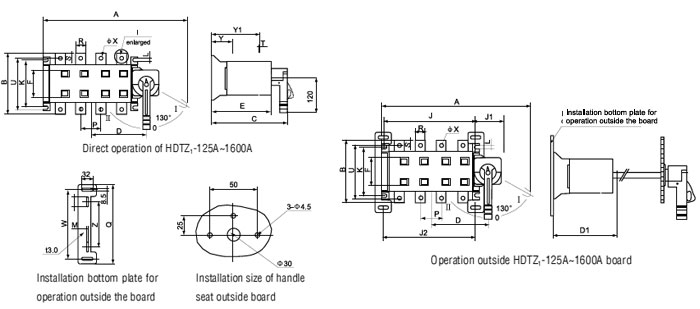

Speciﬁcation	External Dimension and installation Dimension
HDTZ 1 -125A~1600A	A	B	C	D	D1	E	J	J1	J2	K	L	P	R	S	T	U	φX	Y	Y1	F
125A~160A/3	270	135	212	89	195	150	120	65	120	95	7	36	20	25	3.5	115	9	55	121	59
125A~160A/4	300	135	212	104	195	150	120	65	150	95	7	36	20	25	3.5	115	9	55	121	59
200A~250A/3	307	170	260	110	215	172	160	65	160	115	11	50	25	30	3.5	140	11	70	140	76
200A~250A/4	357	170	260	135	215	172	210	65	210	115	11	50	25	30	3.5	140	11	70	140	76
315A~400A/3	372	240	297	150	275	236	210	77	210	180	13	65	32	40	5	206	11	83	192	94
315A~400A/4	432	240	297	180	275	236	275	77	275	180	13	65	32	40	5	206	11	83	192	94
500A~630A/3	372	240	297	150	275	236	210	77	210	180	13	65	32	40	6	206	11	83	192	94
500A~630A/4	432	240	297	180	275	236	275	77	275	180	13	65	32	40	6	206	11	83	192	94
