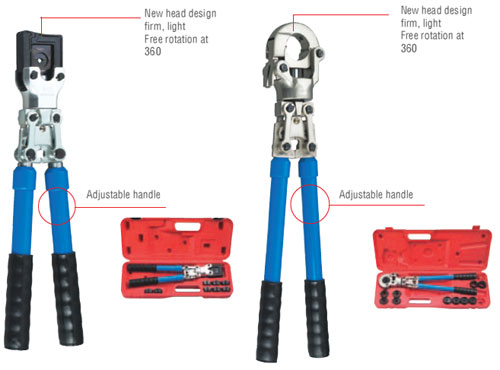

HS35K Interchangcable molds |
HS22K Telescopic handle
|
■Interchangeable molds
■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle
|
■Interchangeable molds
■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle
|
|
Tool Specificarions
|
HS35K |
HS22K
|
Range of Application
|
10-150mm2
(Cu)6-120mm2
(Al)
|
16-300mm2
(Cu)10-240mm2
(Al)
|
Crimping die
|
10,16,25,35,50,70,95,120,150mm2
|
10,16,25,35,50,70,95,120,150,240,300mm2
|
Length
|
420~590mm
|
580~860mm
|
Weight
|
2.5Kg
|
6.2Kg
|
|
|
|
HS-300JYX1 Interchangcable molds |
|
■Open-type pressare connector
■Head free to rotate360°
■Telescopic handle
|
Tool Specificarions
|
|
Range of Application
|
16-300mm2
|
Crimping die
|
6T
|
Stroke
|
12mm
|
Crimping dies
|
16,25,35,50,70,95,120,
150,185,240,300mm2
|
|
|
