DD28 Type Single Phase Watt-hour Meter

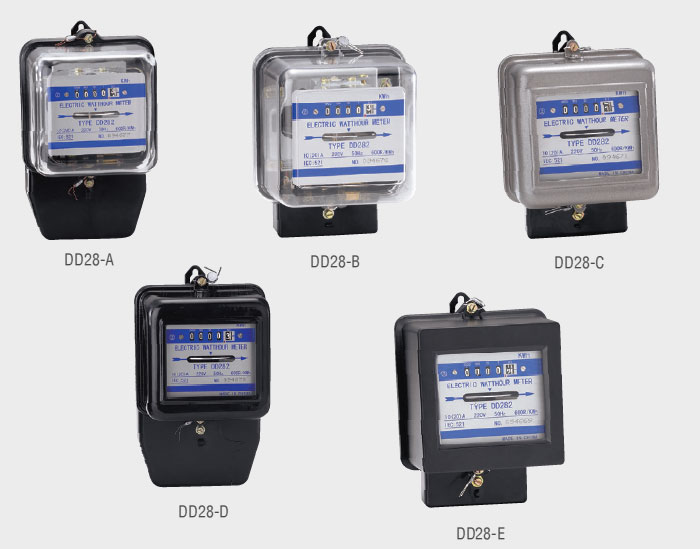

Product Show

DD28 Type Single Phase Watt-hour Meter

DD28 Type Single Phase Watt-hour Meter

Application

DD28 single-phase watt-hour meter is a king of induction meter, which is appli. cable to measurethe rated frequency 50Hz and power loss in electrified wire netting. All technical targets arecompletely conformed to National Standard GB/T15283-94 and international Standard IEC521.

Structure and features

The meter has separable electromagnet and the bearing has four kinds; single-jewel, dual jewel,magnetic thrust and magnetic floating. The case has three kinds; aluminum, plastic and glass. Thedie-casting frame is alloy aluminum with excellent mechanical strength.

Technical parameters

Type	Accuracy (class)	Rated voltage (V)	Rated current (A)	Overload Capacity	Starting Current	Insulation Performance
DD282	2	220V	2 (4), 2.5(10) 3(6), 5(10) 10(20), 20(40), 30(60), 40(80)	200%Ib	0.5%Ib	AC voltage 2KV for 1 minute impulse voltage 6KV
DD283			2 (6), 3(9) 5(15), 10(30) 15(45), 20(60)	300%Ib
DD284			5 (20), 3(12) 10(40), 15(60) 20(80)	400%Ib

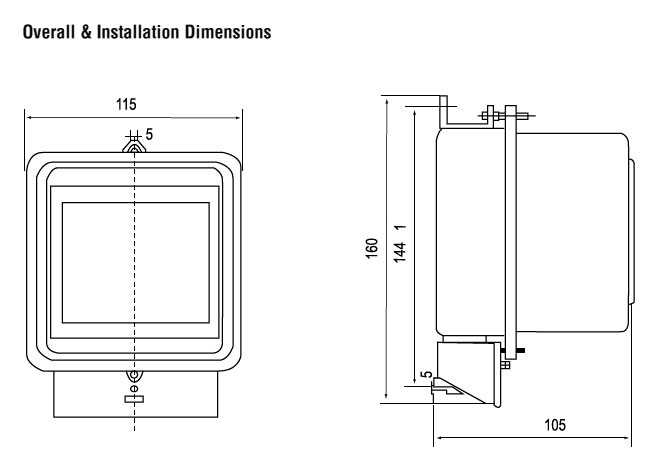

Overall & Installation Dimensions
