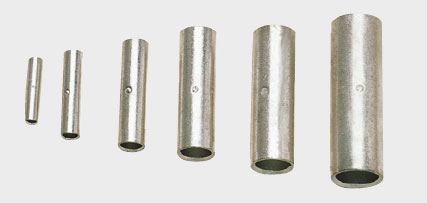

GTY Copper Connecting Tube

GTY Copper Connecting Tube
These products are applicable for the connection of the circular wire, hemicyde wire with power supply cable in distribution equipment they are made of higher 99.9 percent pure T2 copper tube, and coated tin.

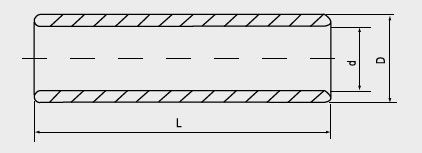

Type D (mm) d (mm) L (mm)
GTY-1.5
 3.7
 1.8
 20
GTY-2.5
 4
 2.5
 20
GTY-4
 4.8
 3.1
 20
GTY-5.5
 5.5
 3.8
 25
GTY-10
 6.8
 4.8
 30
GTY-16
 7.5
 5.5
 35
GTY-25
 9
 7
 40
GTY-35
 10.5
 8.2
 45
GTY-50
 12.5
 9.8
 50
GTY-70
 14.5
 11.5
 55
GTY-95
 17.5
 13.5
 60
GTY-120
 19.5
 15
 65
GTY-150
 21
 16.5
 70
GTY-185
 23.5
 18.5
 75
GTY-240
 26.5
 21
 80
GTY-300
 30
 24
 85
Type D (mm) d (mm) L (mm)
GTY-400
 34
 27
 90
GTY-500
 38
 30
 100
GTY-630
 45
 35
 110
GTY-800
 50
 39
 150
GTY-100
 56
 44
 170
