Product Show

Hydraulic Tools

Hydraulic Tools
Split hydraulic clamp
■It is specially designed for inside and outside power transmission and distribution project, various kinds of connecting terminals, overhead and underground cabling.
■Crimping high voltage cable sleeve, wire grips, un-insulated terminals, hexagon terminals. Crimped part tight and uneasy to break out in good conductivity.
■Standard seven sets of die assembling.
■Dies could be ordered and available in any sizes.
■The oil pipe coupler fitted with PT 3/8 thread.
■To be worked with pedal pump, manual pump and electric driven hydraulic pump.
Model
Range of Application
Crimping force
Stroke
Standard dies
Weight
Packaging & Size
Package
Al, Cu Terminal Crimping

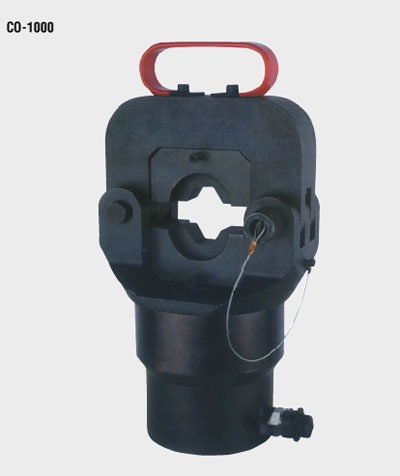

CO-1000
300-800mm2( Al Terminal)
60 ton
24mm
400,500,630,800,1000mm2
32Kg
445x320x175mm
Carton
  400-1000mm2 (Cu Terminal)

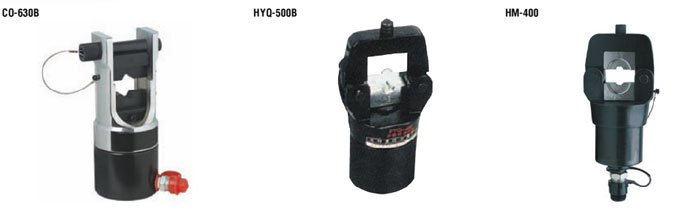

CO-630B
50-630mm2
35 ton
26mm
150,185,240,300,400,500,
17.5Kg
380x295x145mm
Steel case
  ( Al Terminal)
    630mm2

HYQ-500B
50-500mm2
22 ton
22mm
50,70,95,120,150,185,240,
20Kg
  Steel case
        300,400,500mm2

HM-400
35-300mm2( Al Terminal)
16 ton
20mm
50,70,95,120,150,185,240,
9Kg
355x90x155mm
Steel case
  50-400mm2( Cu Terminal)
    300,400mm2


■The compression pliers are designed for hydraulic crimping on power cable and wire.
■The crimped conductor is tested in high conductivity and close contact so that its uneasy to break out and turn hot.
■Open cut design for convenient operation.
■Standard ten sets of die assembling.
■The oil pipe coupler fitted with PT 3/8 thread.
■To be worked with pedal pump, manual pump and electric driven hydraulic pump.

Model
Range of Application
Crimping force
Stroke
Standard dies
Weight
Packaging & Size
Package
Al, Cu Terminal Crimping

CO-630A
150-630mm2
30 ton
25 mm
150,185,240,300,400,500,
25Kg
  Carton
        600mm2

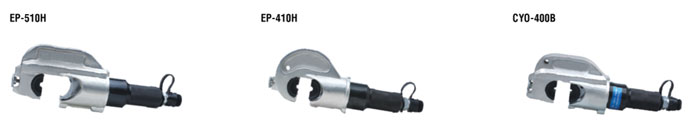

EP-510H
35-300mm2( Al Terminal)
13 ton
38mm
50,70,95,120,150,185,240,
5.6Kg
355x90x155mm
Steel case
  50-400mm2( Cu Terminal)
    300,400mm2
EP-410H
16-300mm2( Al Terminal)
12 ton
30 mm
35,50,70,95,120,150,185,
4.8Kg
355x90x155mm

Steel case
  50-300mm2( Cu Terminal)
    240,300mm2

CYO-400B
16-400mm2( Al Terminal)
12 ton
32 mm
50,70,95,120,150,185,240,
5Kg
355x90x155mm
Steel case
  50-400mm2( Cu Terminal)
    300,400mm2
